Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

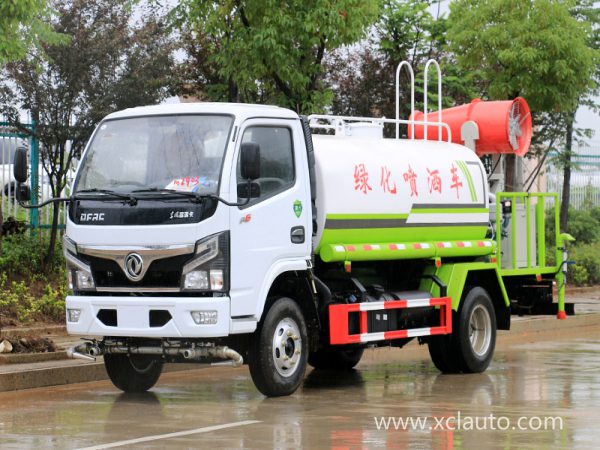

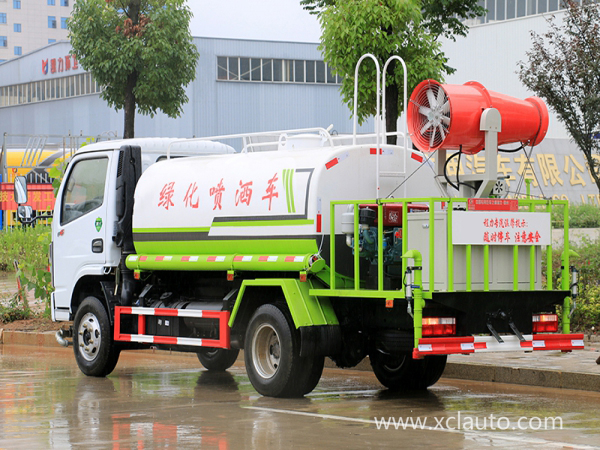

Core parameters of fFreka 5 ton spray truck | ||
project | parameter | remarks |
Chassis model | EQ1075SJ3CDF | |
wheel base (mm) | 2700,2950,3308 | |
engine type | D20TCIF1/YCY24140-60 CA4DB1-11E6/CY4BK461 | National VI emissions, diesel engine |
Engine power (kW) | 81,93，95，103 | |
Overall dimension (length, width and height) (mm) | 6500， 5990X2000X2800,2400 | |
curb weight (kg) | 3450 | |
Maximum total mass (kg) | 7360 | |
Operating speed (km/h) | Engine speed is 750 r / min | In-situ operation |
Effective box volume (m3) | 5 | |
mode of operation | Electric / manual / remote control | |
Sprinkling Working Hours (min) | 30-40 | |
Spray working time (h) | 1-2 | |
Fog gun flow rate (min) | 16-26 | |
horizontal range (m) | 30 | |
Fan Power (kw) | 3 | |
Water pump function (kw) | 2.2 | |
Fog particle size (um) | 50-150 | |
Horizontal rotation Angle | Manual / automatic 360 | |
Lower Angle | -10 / -45 Electric motor | |
Generator power (kw) | 8 | |
