Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

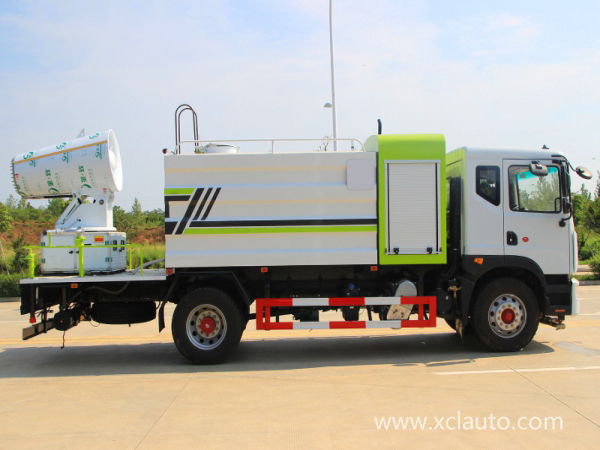

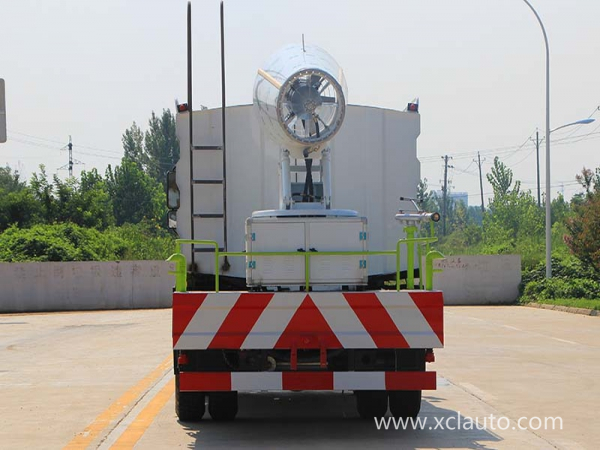

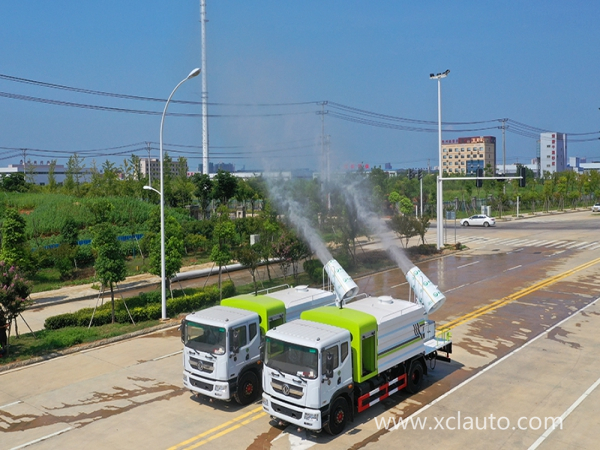

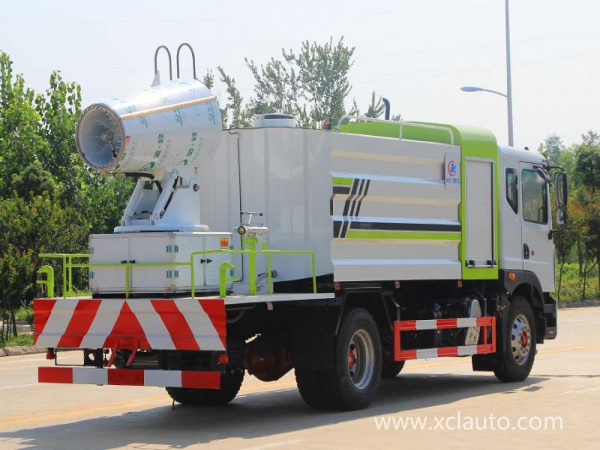

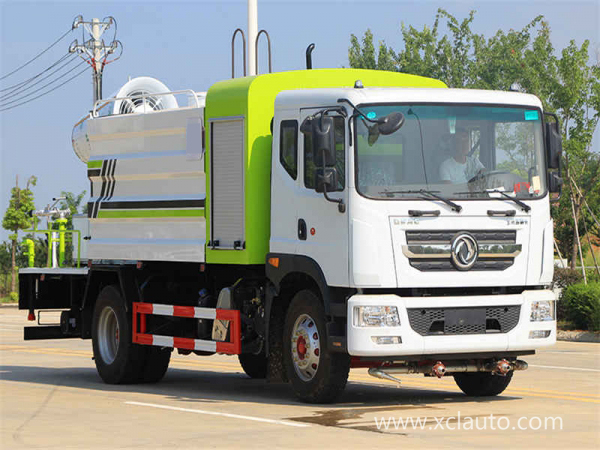

Guo Liu Dongfeng D9 10 tons (square tank) dust suppression truck | ||
item | argument | remark |
Chassis type | EQ1185LJ9CDE | |
Wheelbase (mm) | 4500 | |
Engine type | B6.2 NS6B210 / YCS04200-68 | VI emissions, diesel engine |
Engine power (kW) | 147,154 | |
Overall dimensions (L × W × H) (mm) | 9750,9220,9420 X2550X3750 | |
Service weight (kg) | 9980105 00 | |
Maximum total mass (kg) | 18000 | |
Working speed (km/h) | Engine speed 750 r/min | Work in neutral position |
Effective volume of case (m3) | 10 | |
Box thickness (mm) | 4 | |
Mode of operation | Electric/manual/remote control | |
Sprinkler working time (min) | 150-160. | |
Spray working time (h) | 1 to 2 | |
Fog gun flow (min) | 100-150. | |
Horizontal range (m) | 60-80. | |
Fan Power (kw) | 18.5 to 37 | |
Pump function (kw) | 7.5-11 (Centrifugal pump) | |
Fog size (um) | 50-150. | |
Horizontal rotation Angle | Automatic 360 | |
Angle of low dive | -10/-45 hydraulics | |
Generator power (kw) | 50 (four cylinders) -120 (six cylinders) | |
