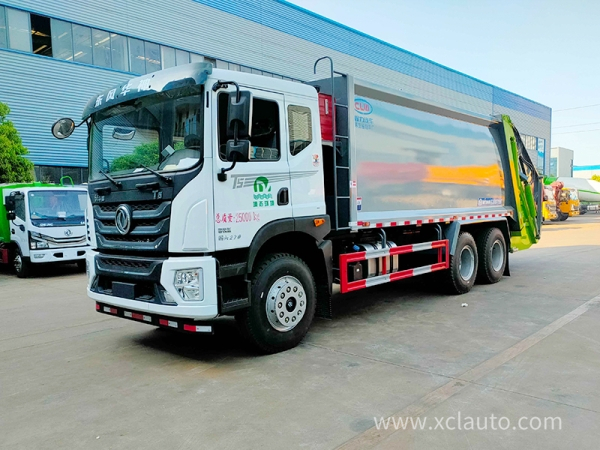

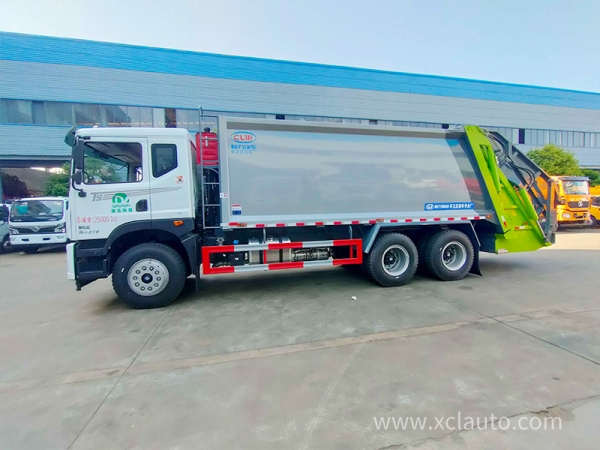

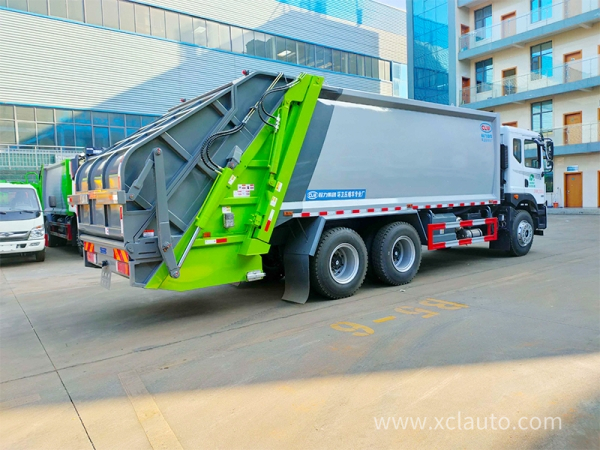

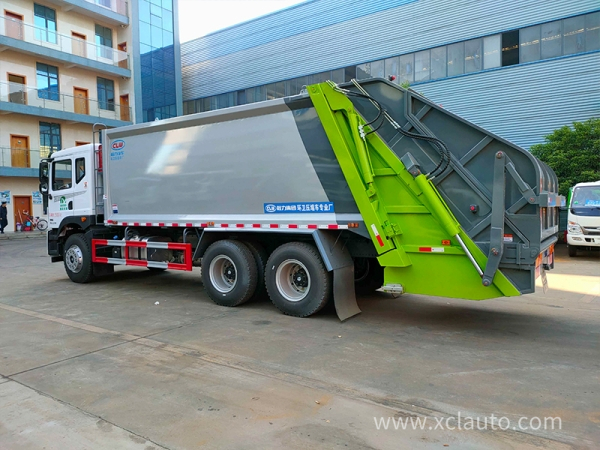

Box volume 23m³ Dongfenghuashen compressed garbage truck

Chassis configuration: Dongfenghuashen T5 rear double bridge country six chassis, white cab with air conditioning, Yuchai 270 HP/optional Cummins 260 HP engine, wheelbase 4350+1350, Shaanxi gear 8 gear transmission, 1100 steel tires, original factory air conditioning electric glass, direction power, ABS, dashcam, central control, air bag seats, etc.

Function description: The box volume is 20-23m³,Overall dimensions: L10500mm,w2550mm,h3300mm， used for loading household garbage, composed of sealed garbage bins, fillers, shovels, hydraulic transmission systems and electrical control systems. The whole vehicle is fully enclosed, using electrical and hydraulic integration technology, with the help of machine, electricity and hydraulic joint automatic control system, through the garbage bin, filler and push shovel and other special devices, to achieve garbage pouring, crushing or flattening, strong loading, the garbage into the car and compacting and passing. All the sewage in the compression process enters the sewage compartment, which solves the problem of secondary pollution in the garbage transportation process. Users can select different tipping mechanisms according to different garbage collection methods: Turn the standard garbage bucket ZBT59003-88 (300L), plastic trash can (240L), plastic trash can (660L), can also be optional triangulation, large floor bucket garbage bucket, swing arm garbage bucket and other flipping mechanisms. Optional pneumatic seal cover.
