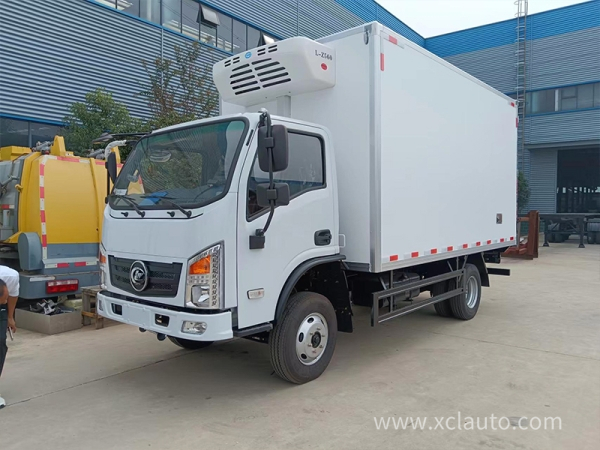

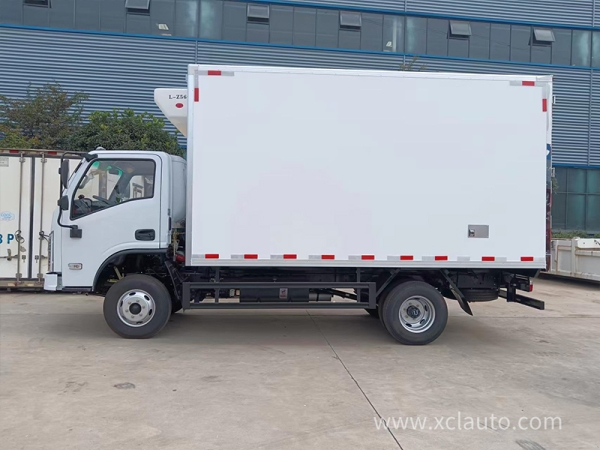

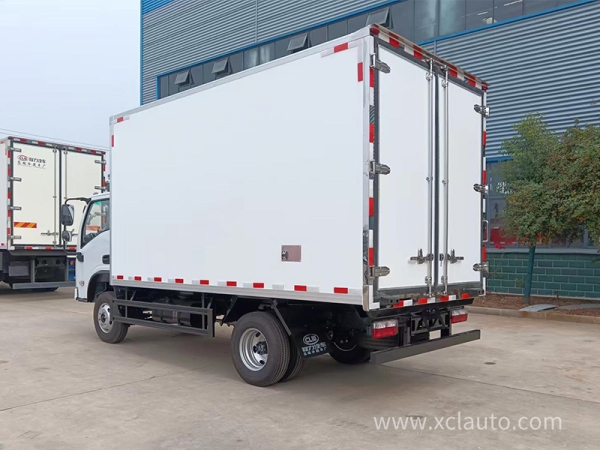

China six Dongfeng small Dorika 14 cubic diesel refrigerated truck

Chassis configuration: Dongfeng original refrigerated truck chassis, 4102 engine, 3.0L displacement, Yunnei 90 HP engine or Yuchai 160 HP, 3300 wheelbase, 1730 single-row cab, Wan Liyang 5-speed transmission, 7.00R16 steel tires, rotary, ABS, air brake, electric doors and Windows, central control lock, air conditioning, 2T/4T front and rear axle

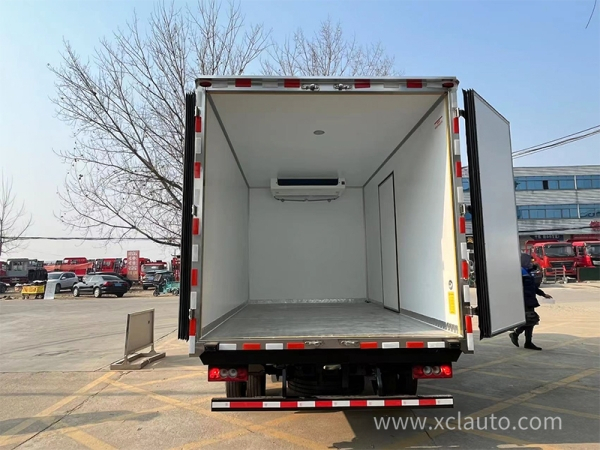

Body configuration: Vehicle size: 5995*2040*3000mm Body diameter: 4100*1840*1820MM, 14 cubic meters, transport weight 5T, refrigerated truck box is the use of advanced wood technology, bridge insulation technology! Box board is made of galvanized pipe skeleton and environmental protection waterproof wood with screws, the middle 8CM insulation board filled, inside and outside 3.0 glass steel, high strength adhesive, hot pressing, the outer frame is made of 304 stainless steel, thickened aluminum profile edge, 27 stainless steel door lock, accessories, box splicing out without glue no gap, cooling speed, slow temperature, insulation effect is good, door with beanside, The auxiliary beam is a one-time folding of 710 big beam steel, and is locked with the pressure plate. The side protection net and the rear bumper are one-time formed and locked with screws.

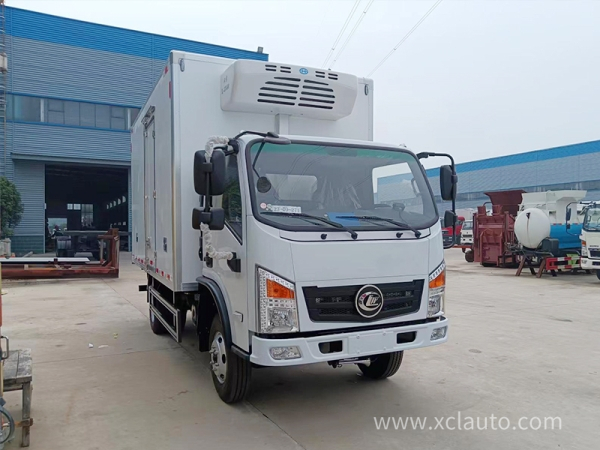

Refrigeration unit: can use imported units can also use domestic units, optional -5° (refrigeration) or -18° (freezing), the temperature can be adjusted, optional humidification equipment (insulation), there is a current car.
