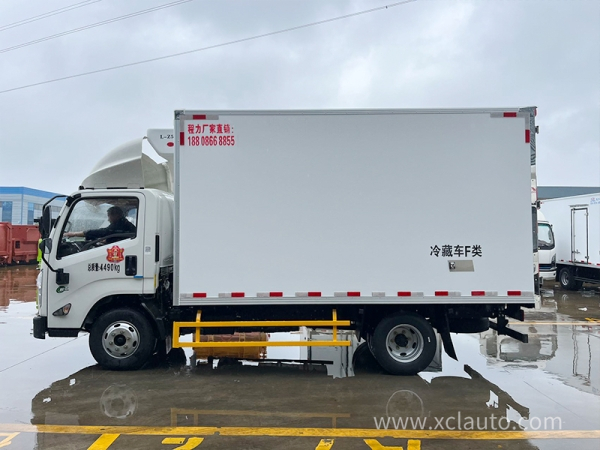

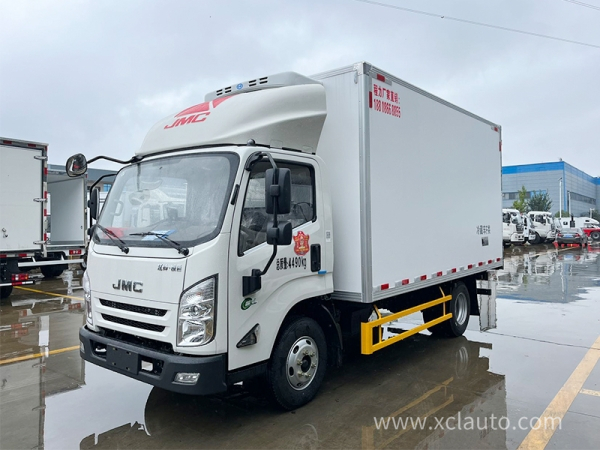

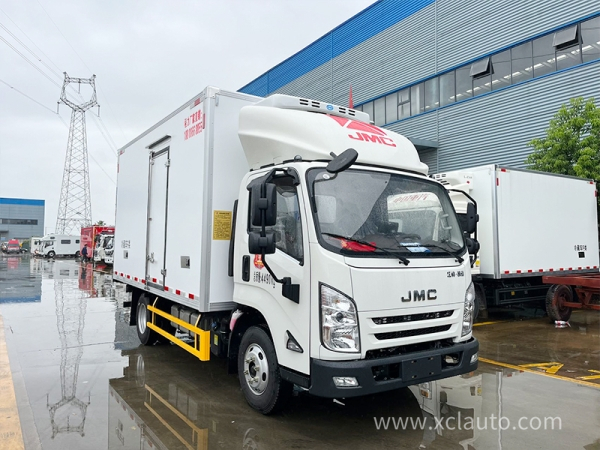

Guo Liujiang Lingyun 4.2m refrigerated truck 1900 cab

Vehicle size :5995X2270X3255mm

Box size :4020X2100x2100mm, actual transport 6T

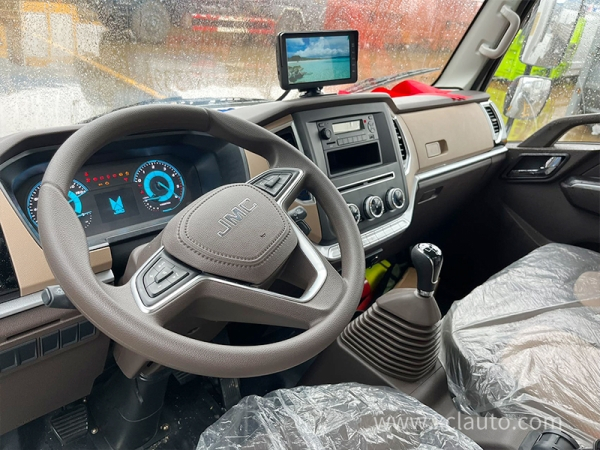

Chassis configuration: cab width 1900mm, 147 horsepower, 6MT, 800 wide girder, air brake, chassis weight 2.23T, fuel tank volume 100L, multi-functional steering wheel, power window, cruise control, 4.5T rear axle, deflector hood, reversing radar, original refrigerated truck double support, original double battery, original 150A generator, Refrigerated truck PTO one-click cooling.

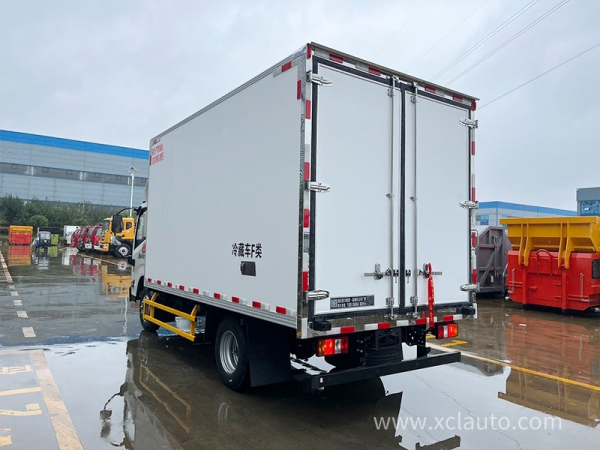

Top configuration: the box is the inner and outer glass steel plate, the middle insulation material is 8cm insulation board, the glass steel pattern bottom plate, the aluminum alloy profile of the box is wrapped, wrapped corners, double back door, single side door, stainless steel door frame, lock, hinge, handle, anti-collision block, the rest of the standard. Domestic minus 18 degrees refrigeration unit. Vehicle supply: vehicle certificate, warranty manual, vehicle tools, invoices.

【 Top configuration 】 :

(1) Production process: The chamber body is manufactured by vacuum adsorption and hydraulic adsorption integrated molding production line, sandwich composite bonding, insulation performance reaches the national A-level standard.

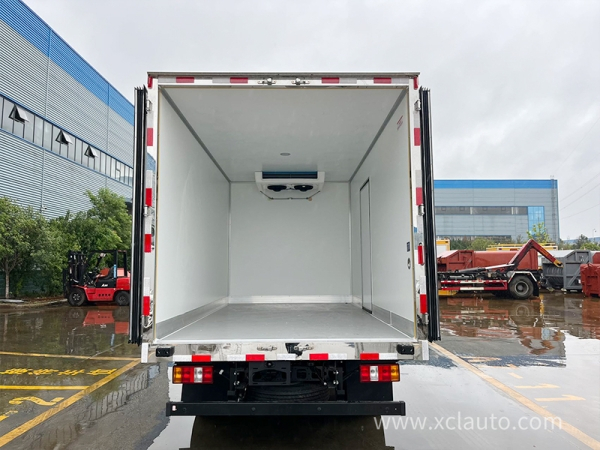

(2) Cabin material: internal and external panels are made of domestic high-quality glass steel (non-light absorption, good heat insulation, strong hardness, oxidation resistance); The middle insulation layer is XPS extruded polystyrene board; Body thickness 8CM. The floor adopts aluminum pattern plate, and the door strip adopts labyrinth rubber sealing strip.

(3) Body accessories: aluminum alloy cladding around the body, stainless steel corner, stainless steel door lock hinges, stainless steel door frame and hinge, energy-saving LED lighting in the body.
